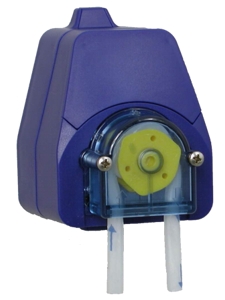

These pumps are low cost, compact and ideal for a wide range of low pressure dosing duties. The units are prewired for simplicity of installation and all use the standard 200 series mini-pump head, which we can supply fitted with Silicone, Santoprene®, or Viton® tubing in a variety of sizes to suit virtually any application regardless of chemical compatibility. The new twin adjustment facility allows the user to adjust both pump speed and reduce run time to give a wide flow adjustment range from maximum down to 10%. The pumps are available in 12vDC, 24v (AC or DC) & 230v AC. For large volumes pumps can be produced to custom spec & with private labeling.
The 200CM now has the option of a twin flow adjustment facility: Adjuster (A) gives cycling time adjustment, ranging from continuous running at MAX setting to an intermittent 3 seconds off / second on when reduced to MIN setting. Adjuster (B) gives a range of flow control from maximum speed down to approximately 35% of full flow. The optional Installation kit comprises the following:
6m PVC tube (4mmID, 6mmOD), 2 x fixing plugs & screws , Stainless steel injector, Suction weight, End cap, 2 x barbed PP tube connectors and 5 x cable ties.
NB: the installation kit is not suitable for use with 1.6mm ID tube models.
To place an order please visit our online shop or for detailed specifications of the various 200 CM configurations please follow this link:
