Cased Peristaltic Pumps: 200 Oneshot

low cost dose dispensing/filling cased pump

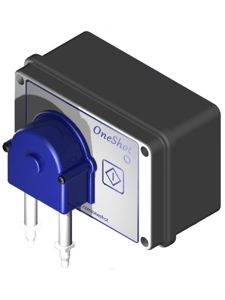

series 200 oneshot cased pump

Thesee low cost units come as standard with a 24v DC Plug top power supply complete with UK, EU & US AC connection heads with 1.8m jack lead. AC mains supply 90-264v.

They use the standard 200 series mini-pump head, which can be supplied fitted with Silicone, Norprene™, or Viton® tubing in a variety of sizes to suit virtually any application regardless of chemical compatibility.

They feature a single dose dispense on operation of the membrane button with easy dose volume setting.

There is a fast & slow speed option, with flow rates up to 165 ml/min.

There are two versions, one with a 15 second delay between doses & one with a 1 second delay making it ideal for filling applications.

Designed for wall mounting or using an optional stainless steel bench stand.

An optional installation kit comprising of 6M of 4mm I.D pvc suction/discharge tube, Tube weight, Foot filter, One way valve and 4 cable ties is also available.

To place an order please visit our online shop or for detailed specifications of the various Oneshot configurations please follow this link:
